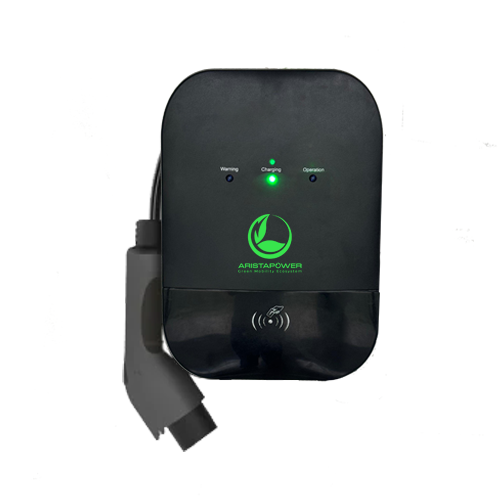

Paket produk ini mencakup AC Wallbox, kartu Smart Charging (pilihan konfigurasi), manual pengguna, dan sertifikat kesesuaian. Produk berukuran 310x210x90mm dengan berat bersih 2,5kg dan berat kotor 3kg, dirancang untuk memberikan solusi pengisian daya kendaraan listrik yang aman dan efisien.
Perangkat yang dilengkapi dengan OCPP dapat mengurangi konsumsi listrik hingga 30% berdasarkan peraturan PLN Indonesia.
| Model | ZDA4-DC1-C11E/ZDA4-DC1-C12E |
| Charging Cable Length | 5m |
| Charging Mode | Mode 3 |
| Dimension | 310×210×90mm (without cable) |
| Weight | 3.5kg |
| Installation Method | Wall-mount/Floor-stand |
| Urgent Button | Yes |
| Warranty | 2 Years |
| Operating Temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 85℃ |
| Working Humidity | 5% – 95% No condensation |
| Working Altitude | ≤2000m |
| Application Site | Indoor/Outdoor |
| Ingress Protection | IP55 / IK10 |
| Atmospheric Pressure | 80kPa ~ 101kPa |
| Certifications | IEC 61851-1, IEC 61851-22, IEC 62196-2 |
| Communication Mode | Bluetooth, WiFi |
| Communication Protocol | OCPP 1.6J |
| Power | 7kW |
| Current | 32A |
| Voltage | One phase, 220V±15% AC |
| Frequency | 47-63Hz |
| Level of Measurement Accuracy | 1.0 |
| Operating Temperature | -40°C ~+55°C |
| Storage Temperature | -40°C ~+85°C |
| Relative Humidity | 5-95%, without condensation |
| IP Rating | IP55 |
| Residual Current Protection Rated Operating Current | 30mA |
| Residual Current Protection Rated Action Time | ≤ 0.1s |
| Connector Power Line Contact | AC277V, 40A |
| Connector Operating Life | ≥ 10000 times |
| Altitude | ≤ 3000m |
